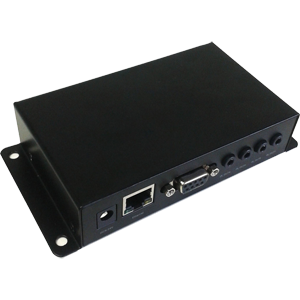

Infrared learner


IR-104 infrared learn is that we sum up the years experiences of the smart home, the hotel experience in control systems, combined with the launch of the super market demand for IR learning control panel. IR-104 has RS232/RS485 communication interface to meet the control requirements, you can choose to install our the EM-32S series of TCP / IP components , directly through network remote control. IR-104 with 4-way infrared output (scalable to more), 4-way I / O input (detection device status), flexible control protocol can be customized to meet your any harsh infrared control needs.

Strong ability to learn

IR-104 is different from the commonly used infrared learning device of the significant characteristics we adopt mathematical statistics to analyze the remote control code, to eliminate the random errors; intelligent identify repeat code to reduce the learning code size, particularly suitable for volume and other long-button of the control; after long-term market test super infrared code pressure places technology, especially for air conditioning, projector and other long code and the study of the strange code control.

A wide range of compatibility

IR-104 is for pressure places a special control code, using the original code storage, intelligent mapping of storage area, you can learn all the remote control in market.

Built-in Ethernet interface

Directly use our the EM-32S series of TCP / IP components , network remote control.


  • Smart home, hotel control systems
  • Central control, conferencing systems

Features and Benefits

- Super air-conditioning, projector and other long codes and strange codes to learn
- Intelligent data analysis to eliminate the random error
- Intelligent Recognition of repetitive coding, reduce learning the code length
- The super-code pressure places, saving storage space
- Real-time clock, support up to 12 channels of timer functions
- Infrared code, import, export function to facilitate the batch installation

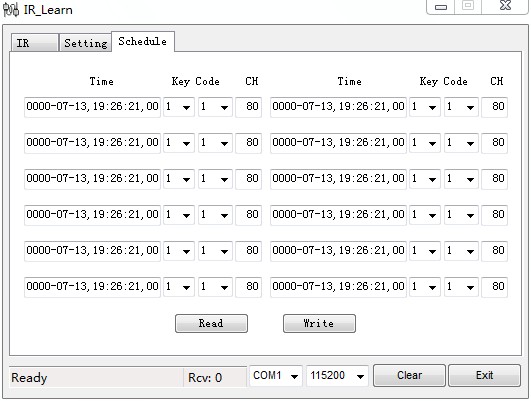

Software Interface

Form Factor Dimensions: 110 x 68 mm
Weight: 48 g
Ethernet Interface Rate: 10/100 Mbps, Auto MDI / MDIX
LEDs: Speed ​​10/100 M, connection run (LNK / ACT)
Serial Interface RS232、RS485、TTL
Serial Communication Parameters Parity: None, Even, Odd, Space, Mark
Data bits: 7, 8
Stop bits: 1, 2
Flow Control: RTS / CTS
Baud rate: 1,200 bps ~ 230,400 bps (supports non-standard baud rate)
Environmental Limits Operating temperature: -40 ~ 85 °C
Storage Temperature: -65 ~ 150 °C
Ambient Relative Humidity: 5 to 95% (non-condensing)
Power Requirements Power Input: 9 - 22 VDC
Power Consumption: 70 mA@12 VDC max.
Reliability Automatic Reboot Trigger: Built-in WDT (watchdog timer)
Warranty Warranty Period: 5 years
