LC-512R

Wireless DMX512 Receiver

Overview

WIDMX LC-512R is unique in its use of advanced radio technologies that are also used in military communication and mobile phones.That is 2.4GHz ISM Band (license-free worldwide) and GFSK Modulation (more efficient transitions).Its user-friendly operation that simplifies all the complex communication protocols makes it possible for the users to just plug and play.

Multiple Communication Protocol, no upgrading trouble

WIDMX LC-512R is now compatible with the world's leading wireless communication protocols like the Sweden’s protocol or the GZ protocols. There is no upgrading trouble.

Application

  • Stage lighting applies to the Grand Variety Show, Gymnasium, Temporary Set-up Stage, TV Station, Centers Conference, Theaters, Opera, Theme Parks, Dance Halls, and Bars, or any lighting equipment with standard DMX512 XLR etc.

Features and Benefits

- FHSS with 79 Channels, interference-free operation.
- 32-bit ARM Processor, DMA transfer without delay
- Standard DMX512 3-pin XLR, Through XLR power supply design
- One-touch operation with a Tri-color status indicator
- Built-in Wireless Solution Compatibility Mode
- Automatically learning of various parameters of controller, just like DMX transfer via cable
- Group Mode, easy plug-and-play operation; Pairing Mode, supports more transmitter universes

LC-512R FCC Certificate Click to view

LC-512R CE Certificate Click to view

LC-512R RoHS Certificate Click to view

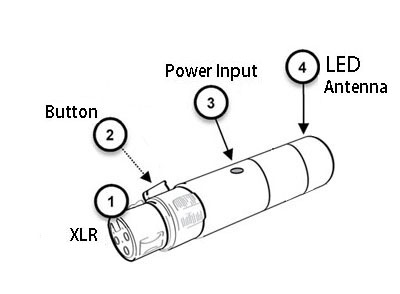

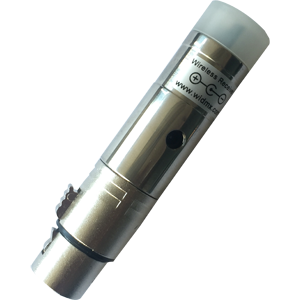

Appearance

Description of Status Indicator

1)In the Set-up mode, different colors mean different communication protocols:

1. Red ----------------- WIDMX Protocol
2. Green -------------- W-DMX Receive Protocol
3. Yellow ------------- Guangzhou(GZ) Protocol

2)In the Use mode, Description of Status Indicator:

Protocol Action Status Description
WIDMX or GZ Protocol Red, Green, Blue,Yellow, Cyan, Purple (, White) 6 / 7 Different Wireless Groups
Flashing Red Transmitting DMX Signal
Flashing Green Receiving DMX Signal
W-DMX Receive Protocol White Connection is not Established
Red Deleting Connection
Red(Fast-Flash) Connection is Lost
Green(Fast-Flash) Connecting to Transmitter
Green(Slow-Flash) Connected, Without DMX Signal
Green Connected, Receiving DMX Signal

Operation Guide

1.Set-up mode:

Press and hold the button before you power up. When you see status indicator turns into the white light, release the button to enter the Set-up mode. In this mode you can select different transmission protocols. Each time you press the button, you would see the status indicator changes in following order: red, green, blue and yellow. Choose one of the protocols,then press and hold the button (> 1S), when you see the white light, release it to enter the use mode.

2.Use mode:

1) Powered up and enter the Use mode;
2) If it is in Set-up mode, press and hold the button (> 1S) until you see the white light, then release it to enter the Use mode.

2.1.In WIDMX protocol or GZ protocol, you could select different DMX Group:

1) The first time when you press the button, it will not change the color but show you the group that you are in.
2) If you press it again it will switch to other group.

2.2.In W-DMX Receive protocol:

Press and hold (> 3S) the receiver’s button until the indicator turns white. The device would disconnect with the transmitter.

Video

Form Factor Type: stand-alone installation
Size: 85 x 18 x 18 mm
Weight: 110 g
System Information CPU: 32-bit ARM Core
Radio Parameters Range: 600 meters (line-of-sight)
Frequency: 2.402 - 2.480GHz, ISM, 79 channels
Spread Spectrum: FHSS, 1100 hops / sec
Modulation: GFSK
Maximum Transmit Power: 23dBm
Receiver Sensitivity: -94dBm
DMX Signal Interface 3-pin female XLR
Environmental Limits Operating Temperature: -40 ~ 85 °C
Storage Temperature: -65 ~ 150 °C
Ambient Relative Humidity: 5 to 95% (non-condensing)
Power Requirements Power Input: DC 5V, ±5%
Power Consumption: 350 mA@5V DC max.
Reliability Automatic Reboot Trigger: Built-in WDT (watchdog timer)
Warranty Warranty: Five-Year Limited Warranty
