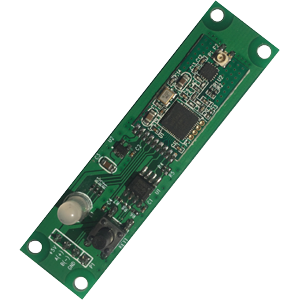

LC-512W

Wireless Solution Compatible Wireless DMX512 Transceiver Module

Overview

LC-512W is fully compatible with the wireless module of Wireless Solution (Sweden Company) in size and protocol. You could enjoy the same or higher quality of wireless DMX transceiver module at a price half of that similar product. Our company is the only company in China that can produce built-in Wireless Solution Compatibility Mode.

Application

  • Stage lighting applies to the Grand Variety Show, Gymnasium, Temporary Set-up Stage, TV Station, Centers Conference, Theaters, Opera, Theme Parks, Dance Halls, and Bars, or any lighting equipment with standard DMX512 XLR etc.

Features and Benefits

- Air protocol, circuit connections and structural dimensions are fully compatible with Wireless Solution
- FHSS with 79 Channels, interference-free operation.
- 32-bit ARM Processor, DMA transfer without delay
- One-touch operation with a Tri-color status indicator
- Built-in Wireless Solution Compatibility Mode
- Automatically learning of various parameters of controller, just like DMX transfer via cable
- Group Mode, easy plug-and-play operation; Pairing Mode, supports more transmitter universes

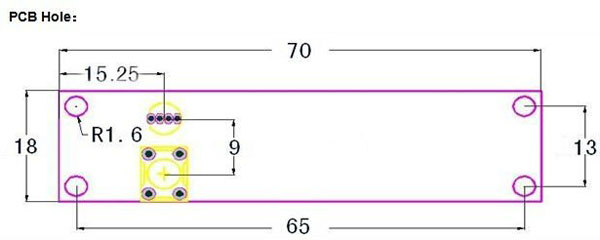

Dimensional drawings

Description of Status Indicator

Mode Action Status Description
W-DMX Receive Protocol White Connection is not Established
Red Deleting Connection
Red(Fast-Flash) Connection is Lost
Green(Fast-Flash) Connecting to Transmitter
Green(Slow-Flash) Connected, Without DMX Signal
Green Connected, Receiving DMX Signal
W-DMX Transmit Protocol Red Deleting all Receivers’ Connection
Blue(Fast-Flash) Connecting with the Receiver(s)
Blue(Slow-Flash) No DMX Signal Input
Blue Transmitting DMX

Operation Guide

1.In W-DMX Transmit protocol:

1) By pressing the button, the transmitter can be connected to all powered but not connected receivers within the coverage area;
2) Press and hold (> 3S) the transmitter’s button until the indicator turns red. The device will delete all the receivers' connection within the coverage range.

2.In W-DMX Receive protocol:

Press and hold (> 3S) the receiver’s button until the indicator turns white. The device would disconnect with the transmitter.

Weight and Dimension Dimension: 82 x 46 x 10 mm
Weight: 30 g
System Information CPU: 32-bit ARM Core
Radio Parameters Range: 600 meters (line-of-sight)
Frequency: 2.402 - 2.480GHz, ISM, 79 channels
Spread Spectrum: FHSS, 1100 hops / sec
Modulation: GFSK
Maximum Transmit Power: 23dBm
Receiver Sensitivity: -94dBm
DMX Signal Interface RS485
Environmental Limits Operating Temperature: -40 ~ 85 °C
Storage Temperature: -65 ~ 150 °C
Ambient Relative Humidity: 5 to 95% (non-condensing)
Power Requirements Power Input: DC 5V, ±5%
Power Consumption: 350 mA@5V DC max.
Reliability Automatic Reboot Trigger: Built-in WDT (watchdog timer)
Warranty Warranty: One-Year Limited Warranty
